| Luogo di origine: | Cina |
|---|---|
| Marca: | XQ |
| Certificazione: | CE |
| Numero di modello: | XQQG |
| Quantità di ordine minimo: | 1 |
| Prezzo: | USD 3200-3300 Per Set |
| Imballaggi particolari: | Imballaggi in legno |
| Tempi di consegna: | 10 giorni |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | 100 serie al mese |
| Macchine per il lavoro: | Caramelle di pasta Riempimento | Livello automatico: | Semi-automatico |
|---|---|---|---|
| Peso di Machien: | 30 kg | Modalità guidata: | Pneumatico, elettrico |
| Dimensioni della macchina: | 90*23*25CM | Applicazione: | Alimento, chimico, medico |
| Servizio post-vendita fornito: | Supporto online, supporto tecnico video |
Desktop Small Volume Paste Filling Machine With High Precision Ceramic Piston Pump For Cosmetic Cream Paste Filling
Characteristic of Desktop Small Volume Paste Filling Machine
A Desktop Small Volume Paste Filling Machine is a compact, benchtop device designed for precise and efficient filling of viscous pastes, creams, gels, or semi-liquid products into small containers (e.g., tubes, bottles, jars, or syringes). It is commonly used in industries like cosmetics, pharmaceuticals, food, electronics (thermal paste), and chemicals for low-to-medium production runs or R&D purposes.
Key Features:
Compact & Portable:
Fits on a workbench or tabletop, saving space in labs or small production areas.
Lightweight and easy to relocate.
Precision Filling:
Adjustable volume control (e.g., 0.1ml–500ml, depending on model).
Pneumatic or manual operation for consistent dosing.
Minimal dripping or spillage.
Material Compatibility:
Handles thick, sticky substances like ointments, adhesives, toothpaste, or food pastes.
Parts in contact with the product may be stainless steel or food-grade plastic for corrosion resistance.
User-Friendly Design:
Simple controls (touchscreen, knobs, or foot pedal).
Easy-to-clean components (disassembly possible).
Adjustable filling speed and nozzle height.
Versatile Applications:
Cosmetics (lip balm, creams).
Pharmaceuticals (ointment tubes).
Food (sauces, condiments).
Industrial (lubricants, sealants).
Optional Accessories:
Multiple nozzle sizes.
Conveyor belt attachment for automation.
Sensors for container positioning.
Technical data of Desktop Small Volume Paste Filling Machine
| Model | XQQG-12 | XQQG-25 | XQQG-50 | XQQG-100 | |
| Pump head | High purity ceramics | ||||
| Filling accuracy | ≦±0.25% | ||||
| Filling range | 1-12ml | 2-25ml | 5-50ml | 10-100ml | |
| Manufacturing speed | 0-40 Bottle/min | ||||
| Size of Host Machine | 500*550*650 mm | ||||
| Power | AC 220V 50-60Hz 50W | ||||
| Air pressure | 0.4-0.6Mpa | ||||

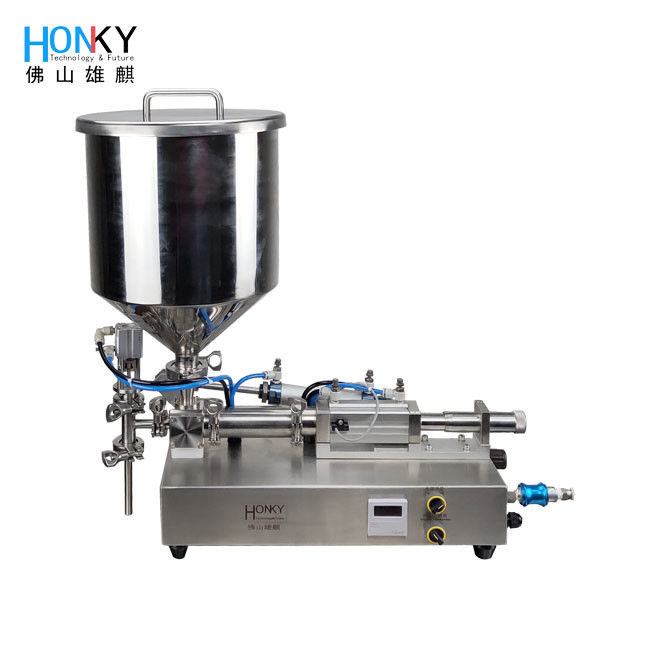

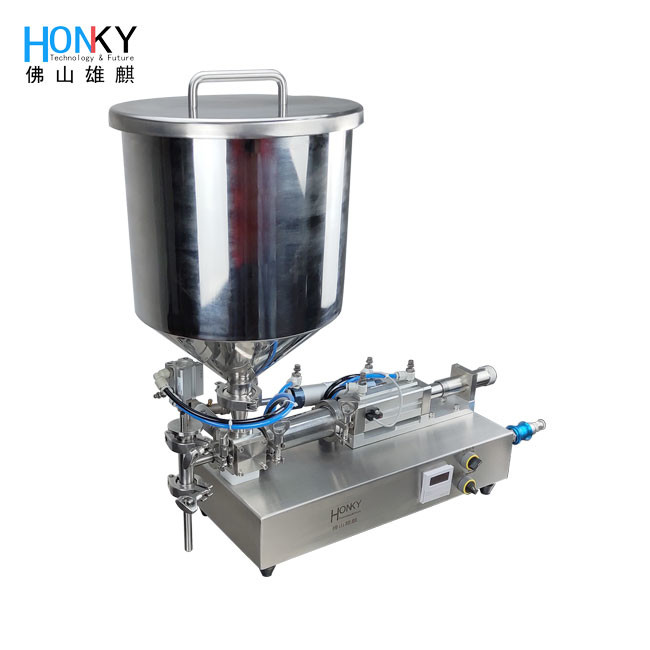

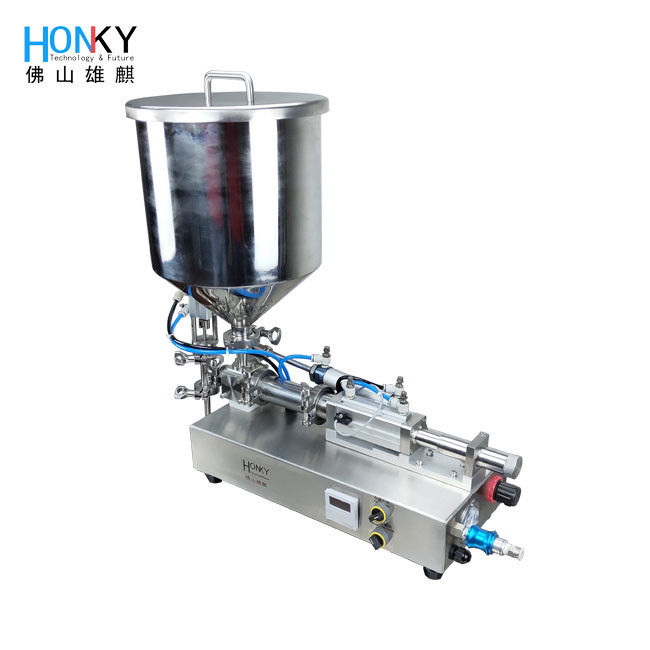

Product display of Desktop Small Volume Paste Filling Machine:
Hot Sale Desktop piston paste filling Machine XQ-QG

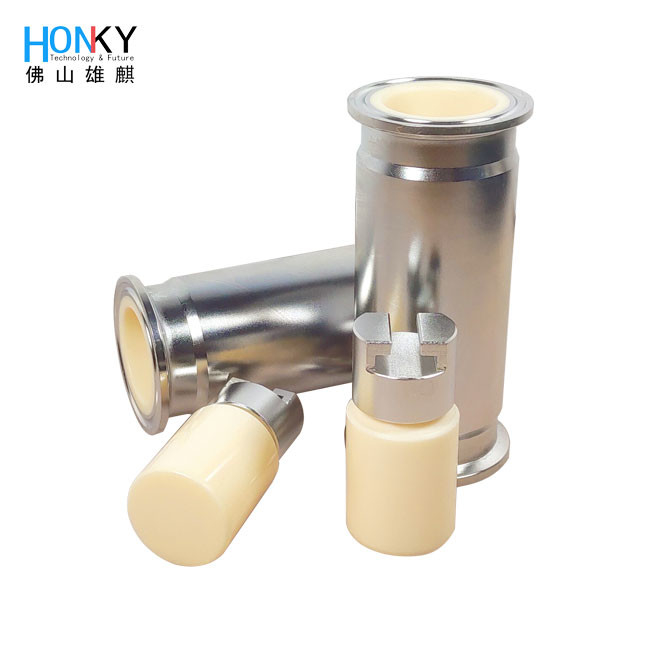

Advantage of our piston pump:
1.The working pressure, volumetric efficiency and total efficiency are all the highest. Because the plunger and cylinder bore are easy to process, the dimensional accuracy and surface quality can reach very high requirements, so the matching accuracy is high, the oil leakage is small, and the working pressure that can be achieved is generally 20-40 MPa, and the highest can reach 100 MPa.
2.The transmittable power is the largest. As long as the plunger diameter or the number of plungers is increased appropriately, the flow rate will increase. High pressure and high current can transmit high power.
3.Wide speed range.
4.Long service life and high power density. The main parts of the plunger pump are under pressure, so that the material strength can be fully utilized, so use long life, and low weight per unit power.
5.Good bidirectional variable capacity. Changing the stroke of the plunger can change the flow rate, making it easy to make various variable types.
